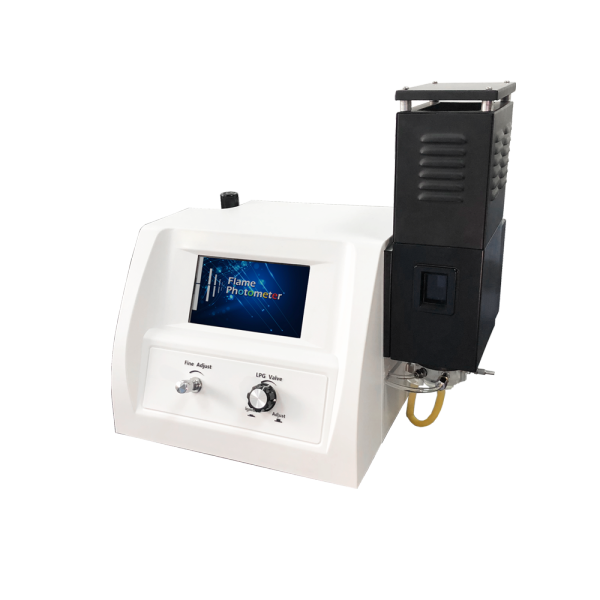

FP6431 flame photometer is a newly designed instrument. It has the advantages of small size, convenient operation, stability and reliability.

The host uses a 7-inch color capacitive touch LCD screen,It can store up to 200 sets of test data of the standard curve with a set of 10 points.The FP series flame photometer uses liquefied gas as fuel gas.

Main Features

● 7- inch color touch- screen

● Direct concentration display

● Automatic calculation of correlation coefficient

● Pre-selection of flame sizes

● Flameout protection device

● Measuring range changing

● Concentration units selectable

● Multilingual user interface

● Air compressor provide

Technical Specifications

● Operation mode: 7- inch color touch- screen
● Display value: Concentration value
● Data range: 0.000～999.9
● Testable: K, Na, Ca
● Channel Qty: 3
● Range ppm:K 0-100,NA 0-160,CA 0-1000
● LOD ppm: K 0.01,Na 0.01, Ca 2
● Linear error: K 0.195, Na 0.69, Ca 3
● Response time: <8s
● Sample uptake: <6ml/min
● Stability: < 3% drift over15s when continuously aspirating.
● Reproducibility: < 3% coefficient of variation for 7 consecutive samples
● Curve Graph: Display
● Printer: Optional build-in thermal printer
● COM: USB
● Fuel: LPG
● Power: AC220V±22V 50Hz±1Hz,250W

● Packing size: 570mmX530mmX400mm 0.12M 18kg
